Solarix MUST 51.2V 100Ah LiFePO4 Battery – Advanced Solar Energy Storage
The Solarix MUST 51.2V 100Ah LiFePO4 Lithium Battery is a high-performance wall-mounted battery module designed for modern solar and backup power systems. With a usable energy capacity of 4.8kWh, this battery provides reliable power storage for homes, offices and hybrid inverter installations.
Built using Lithium Iron Phosphate (LiFePO4) technology, it offers superior safety, longer lifespan and higher efficiency compared to traditional lead-acid batteries. The integrated Battery Management System (BMS) protects against over-charging, over-discharging and temperature issues, ensuring stable long-term performance.
Key Features
High Energy Storage Capacity
- 51.2V 100Ah lithium battery
- Up to 4.8kWh usable energy
Long Life Lithium Technology
- 6000+ cycles at 80% depth of discharge
- Designed for a lifespan of up to 15 years
Integrated Smart BMS Protection
- Over-charge protection
- Over-discharge protection
- Temperature protection
- Current limiting protection
Parallel Expansion Capability
- Supports parallel connection of up to 4 battery modules
- Scalable for larger solar installations
Compatible with Major Inverter Brands
- Growatt
- Deye
- LuxPower
- Voltronic
- Victron
- MUST

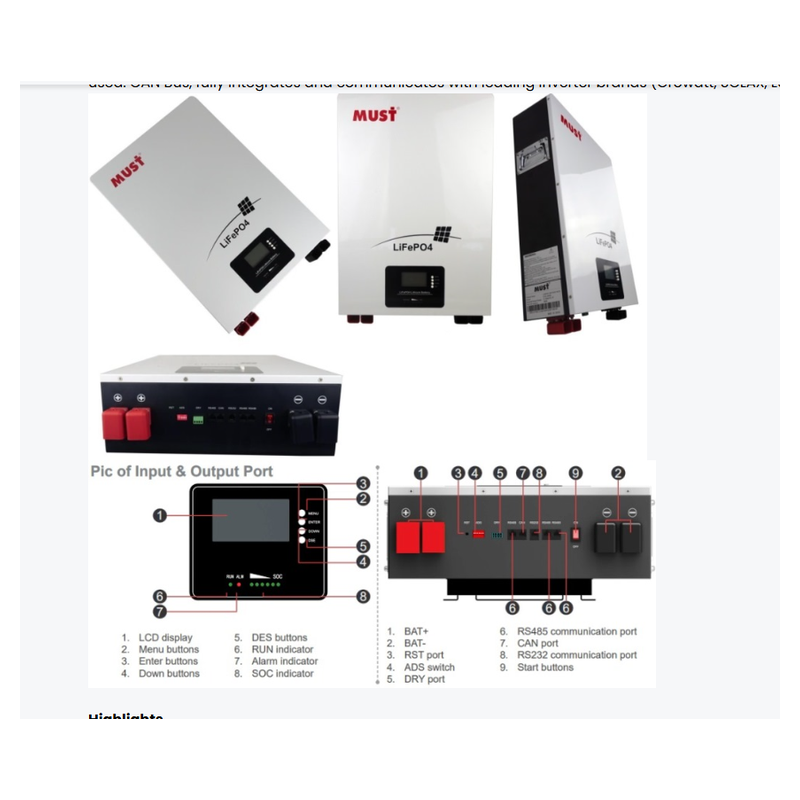

Advanced Communication Ports
- CAN Bus
- RS485
- RS232
Technical Specifications
- Nominal Voltage: 51.2V
- Rated Capacity: 100Ah
- Total Usable Energy: 4.8kWh
- Maximum Continuous Charging Current: 100A
- Maximum Continuous Discharging Current: 100A
- Equalised Charge Voltage: 57.6V
- Cut-off Voltage: 44V
- Cycle Life: 4000 cycles @ 100% DOD / 6000+ cycles @ 80% DOD
- Dimensions: 400mm × 150mm × 580mm
- Weight: Approx. 44kg
Ideal Applications
- Residential solar systems
- Hybrid inverter installations
- Load shedding backup power
- Home energy storage
- Off-grid power systems
A powerful lithium battery solution designed for modern solar energy systems and reliable power independence.
