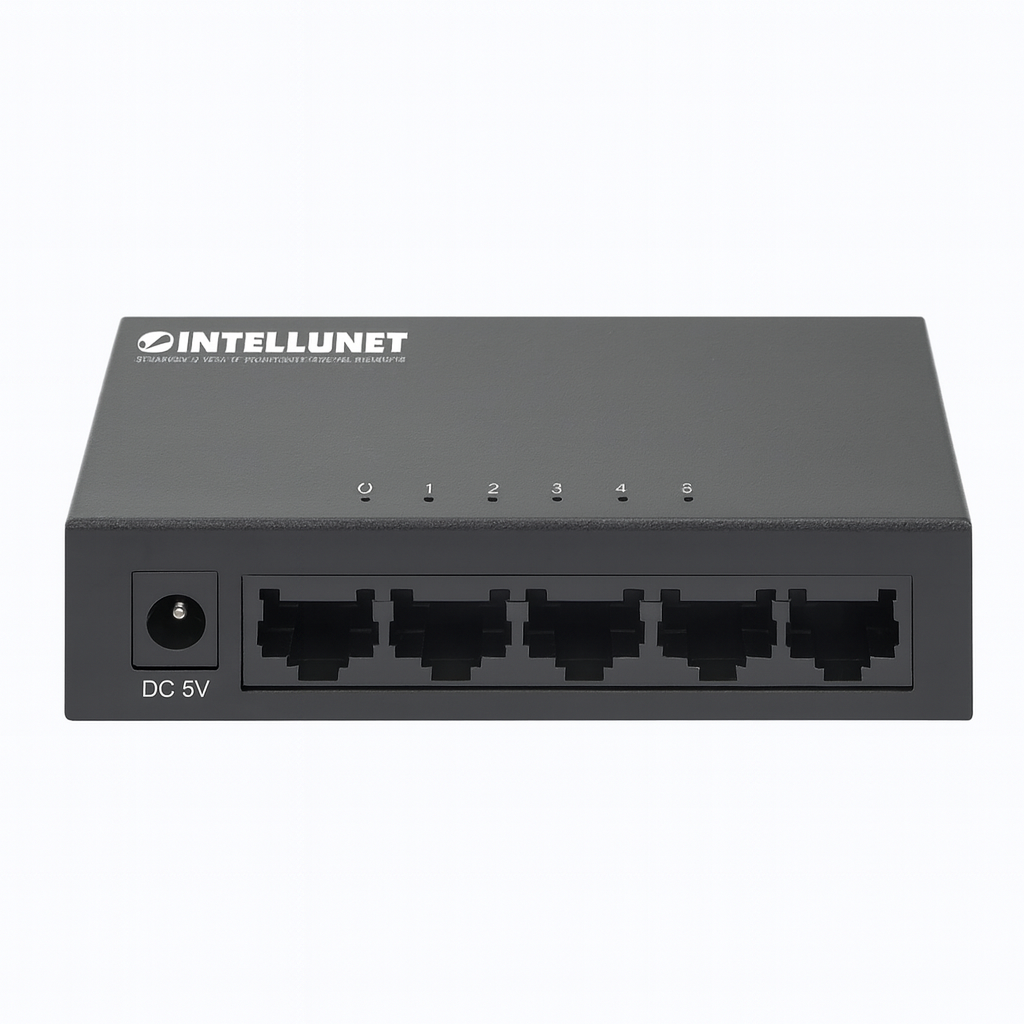

The INTELLINET NETWORK SOLUTIONS 5-Port Fast Ethernet Office Switch is perfect for the small and medium-size business looking a durable switch that is reliable and easy to install. The metal case is more durable than a plastic enclosure, and is very appropriate for locations with potentially harsh environments, such as a warehouse, factory or wiring closet.

Features
- Five 10/100 auto-sensing ports – automatically detect optimal network speeds
- Supports any combination of 10 Mbps or 100 Mbps network devices
- Green Ethernet power-saving technology deactivates unused ports and adjusts power levels based on the cable length
- All RJ-45 ports with Auto-MDIX (auto uplink) support
- Supports NWAY auto-negotiation
- Store and forward switching architecture
- Full/half duplex operation
- IEEE 802.3x flow control for full duplex
- Zero packet loss back-pressure flow control for half duplex
- Packet filtering/forwarding rates: 148.800 pps (100 Mbps), 14.880 pps (10 Mbps)
- Supports 1024 MAC address entries
- 48 kBytes buffer memory
- LEDs for power, link/activity, full/half duplex
- Compact metal case
Specifications
General
- Media support:
– 10Base-T Cat3, 4, 5 UTP/STP RJ-45
– 100Base-TX Cat5 UTP/STP RJ-45 - Packet filter/forwarding rate:
– 148.800 pps (100 Mbps)
– 14.880 pps (10 Mbps) - Buffer memory: 48 kBytes
- MAC address table: 1024 entries
- Switch architecture: store and forward
- Certifications: FCC Class B, CE Mark
